Model Time clock type: 63504P(F63P1)
Meter type: 63604P(F63P3)
Installation type Top-mounted
Inlet/outlet 1″ M
Drain 1/2″ M
Brine line connector 3/8″M
Base 2.5″-8NPSM
Riser pipe 1.05″OD
Water treatment capacity 4 m³/h
Tank diameter range 6″~18″
Water pressure 0.15MPa～0.6MPa
Water temperature 5℃～50℃
Water turbidity Downflow regeneration＜5FTU
Power adapter Input AC100～240V/50～60Hz
Output DC12V/1.5A

Application Residential softening system;
Ion exchange system;

Boiler softening water system;

RO pretreatment softening system

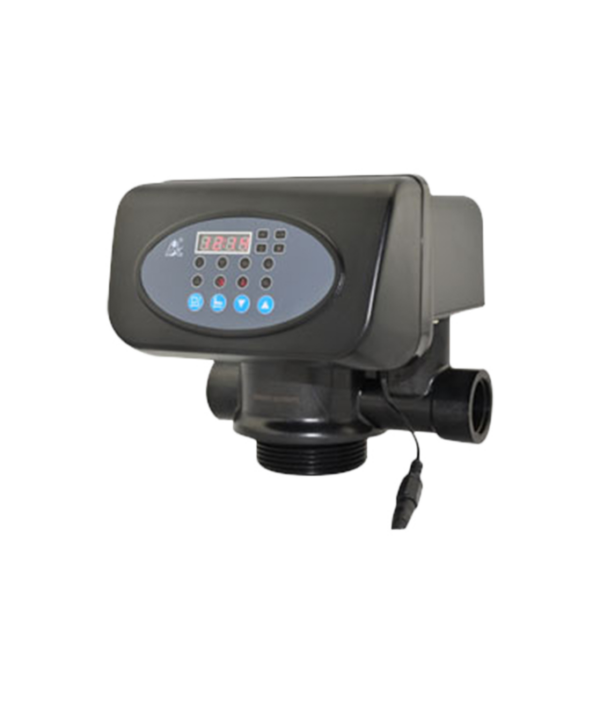

RUNXIN AUTOMATIC SOFTENER
RUNXIN Automatic Softener

Product Overview
Main Application And Applicability
Used for softening or demineralisation water treatment systems.
It is suitable for the residential softening system.
Ion Exchange Equipment
Boiler softening water system
RO Pretreatment softening system, etc.
Product Characteristics
Simple structure and reliable sealing
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing. It combines with Service, Backwash, Bine and Slow Rinse, Brine Refill, and Fast Rinse.
Variety of installation methods
No water passes the valve in regeneration in a single tank type.
Manual Function
realize regeneration immediately by pushing the manual button at any time.
Long outage indicator
If an outage overrides 3days, the time of the day indicator “12:12” will flash to remind you to reset the new time of day. The parameters no need to reset for a; the parameters are kept as before.
LED Dynamic screen display
The stripe on the dynamic screen flash, it indicates the control valve is in service; otherwise, it is in the regeneration cycle.
