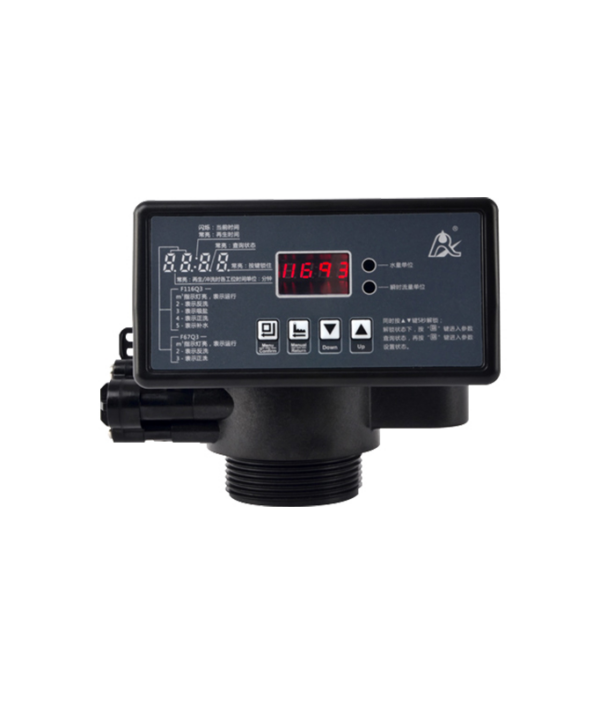

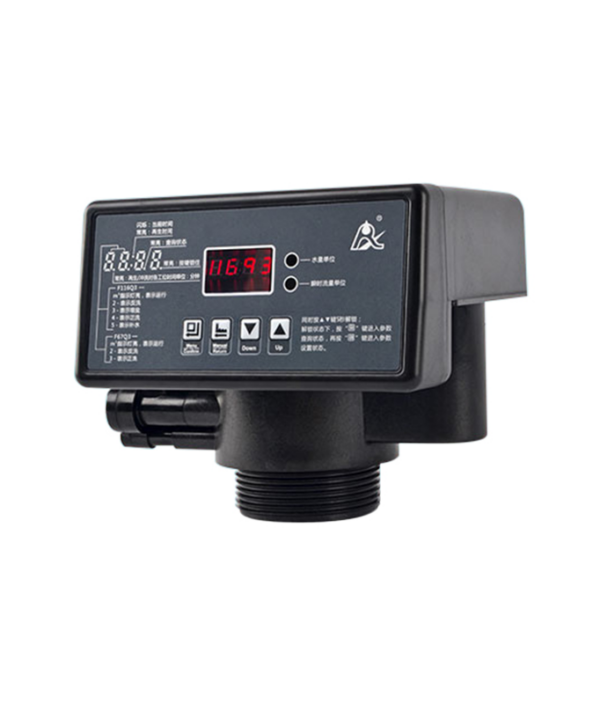

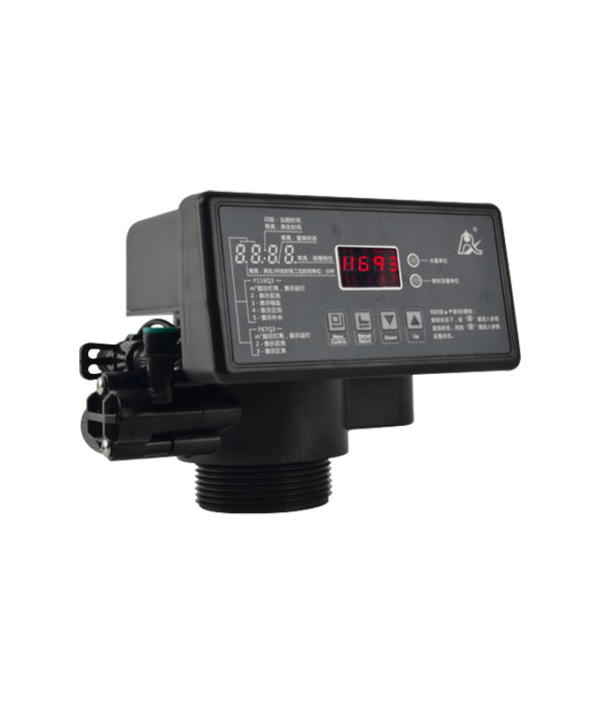

RUNXIN F117Q Automatic Softener Valve 3/4″ 2.5″/ 2(m3/H)

Technical Parameters：
Water Pressure 0.15—0.6MPa
Water Temperature  5℃-50℃
Transformer Output DC12V、1.5A
Water Turbidity Down-flow regeneration＜5FTU
Inlet/Outlet  3/4″F
Drain 1/2″M
Brine Line Connector 3/8″M
Base 2.5″-8NPSM
Riser Pipe 1.05 ″OD
Max Flow Rate 2 m3/h
Suitable Tank Size (in) 6″～12″
Product Characteristics：
More reliable open/close way
Long-term outage indicates
Interlock function
Icon lock function
Mainboard and display board integrate, no need wirings, easy to after-sales.
Optocoupler locate, simple and makes locating board universal

Model 65503(F117Q1)
65603(F117Q3)
Installation Top-mounted
Inlet/outlet 3/4″F
Drain 3/4″ NPT
Brine line connector 3/8″ M
Base 2.5″-8NPSM
Riser pipe 1.05″OD
Water treatment capacity 3 m³/h
Tank diameter range 6″~12″
Water pressure 0.15MPa～0.6MPa
Water temperature 5℃～50℃
Water turbidity Down flow regeneration＜5FTU
Power adapter Input AC100～240V/50～60Hz
Output DC12V/1.5A
