Available Options
RO membranes available with brands of Filmtec, Hydranautics, Vontron, and Toray
FRP membrane vessel
Grundfos multistage pump
CNP multistage pump
Concentrate recycling flow meter
Provision for CIP
Standard Features Of The Reverse Osmosis System
RO micro-computer controller with permeate TDS readout
300PSI stainless steel membrane housing+PE end caps
LPE multistage pump for 1500-8000GPD
5-micron sediment pre-filter x 2 in series
Rotameters for permeate and concentrate stream
Pressure gauges for prefilter feed and Reverse Osmosis feed
Low-pressure switch
SS316 concentrate needle valve
Concentrate recycling valve (without flow meter)
The electro-plated SS304 skid frame

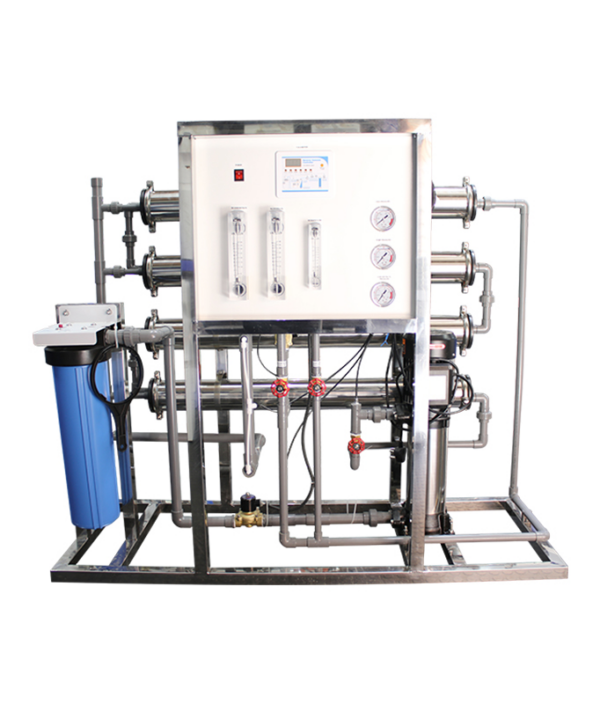

Models RA 8000
Feed Water TDS <1500ppm
Recovery Rate* 50-75%
Vessel Array 1:1:1:1
Vessel Size 4040 x 4
Permeate Flow Rate (GPM/lpm)** 4.2/15.8
Feed Connection 3/4″ FNPT
Permeate Connection 1/2″
Concentrate Connection 1/2″
Flush Connection 1/2″
Pump type & Motor HP Multistage 2HP
Gross Dimension (cm) 69X63X147
Gross Weight (kg) 100
* Minimum recovery rate is calculated based on no concentrate recirculation, it is possible to increase the overall recovery rate by increasing the concentrate circulation flow.

** Permeate flow rate can vary depending on the type of membrane, raw water quality, and recovery rate.

We are specialized in accommodating our customers with RO System Controller Taiwan. We take responsibility for the reliability of our RO System Controller which is outlined with the quality specification.

The RO System Controller is robust in its construction and capable enough to perform for a long time in an efficient way. All these controllers are provided in the best dimensions and fully scrutinized on precise parameters. You can rest assured that you are in the safest hand as we ensure the quality performance of our RO System Controller.

RO System Controller comes with an Adjustable Switch and fully Equipped and Customizable options that can make it easy to use. Apart from that, they are factory tested and preserved, backed by a 1-Year limited warranty. These controllers maintain essential natural minerals and deliver clean and pure drinking water. It is easy to control and install too.
