Specification
Feed Water TDS: <1500ppm
Recovery Rate: 34-75%
Vessel Array: 1:1
Vessel Size: 4040 x 2
Permeate Flow Rate (GPD/LPM): 2.1/7.9
Feed Connection: 3/4” FNPT
Permeate Connection: 1/2”
Concentrate Connection: 1/2”
Flush Connection: 1/2”
Pump Type & Motor HP: Multistage 2HP
Gross Dimension (cm): 69 x 63 147
Gross Weight (kg): 88

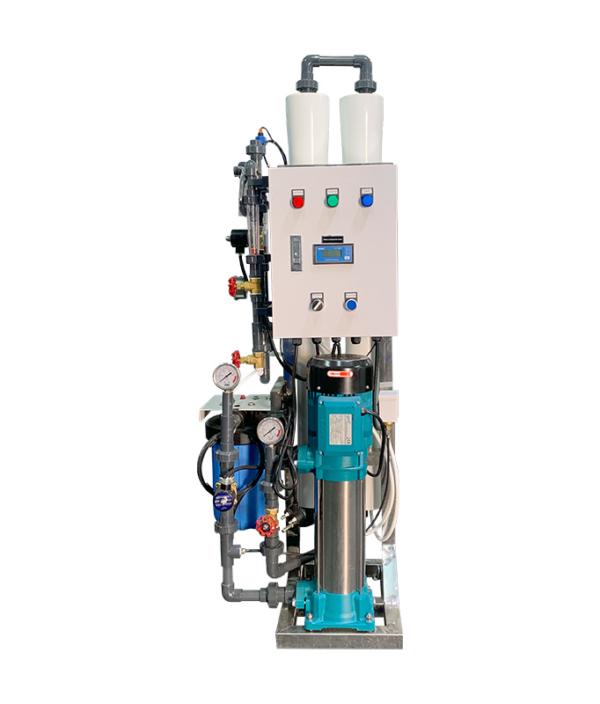

Application of The Industrial RO System
High-quality drinking water for residential quarters
Meets the demand for high-quality drinking water in high-grade residential quarters. Support drinking purified water 24 hours a day.
Purified water production plant
It can be equipped with a full-automatic filling machine to form a full-automatic barrelled water production line.
Raw material water for the food industry
For example, the mixing of additives, ingredients, soup, or juice. The pure water can improve the taste and inhibit the growth of organic matter, and improve the shelf life of products.
Water preparation for dairy, beverage, and wine industry
It is suggested to adopt a two-stage reverse osmosis device to prevent poor taste caused by foreign matters in the water.
Water for the chemical industry
It is used in the proportion of chemical raw liquid, chemical product manufacturing, chemical circulating water, etc. Pure water can effectively prevent additional chemical reaction and quality deviation caused by excessive ions in water.
Boiler water for the power industry
It can supply pure water for boiler, coal-fired boilers, the low-pressure boiler power system in Factories and mines. So as to improve production efficiency and prolong the service life of the equipment.
