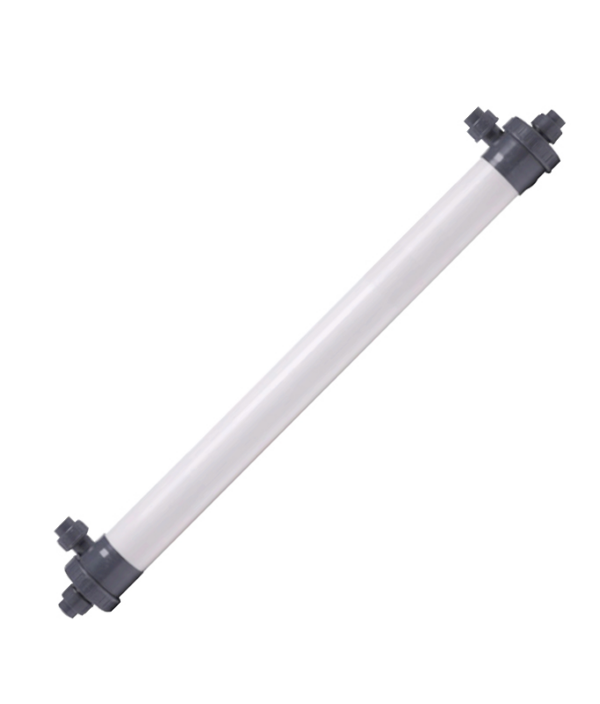

🔍 UF Membrane AQU-90R1599,00 UF Membrane AQU-90 quantity Add to cart Category: Uf Ultrafiltration Systems Brand: Pure Drop Description UF Membrane AQU-90 Ultrafiltration Components Parameters Model No. AQU-90PAN AQU-90PS AQU-90PP AQU-90PVDF Size L Φ90X1162mm S Φ90X678mm L Φ90X1162mm S Φ90X678mm L Φ90X1162mm S Φ90X678mm L Φ90X1162mm S Φ90X678mm Hollow fiber material PAN PS PP PVDF Hollow fiber ID/OD 1.0mm / 1.6mm 1.0mm / 1.6mm 0.4mm / 0.5mm 0.7mm / 1.3mm MWCO (Daltons) 50k～100k 10k～100k 50k～100k 100k～200k Membrane area L-4.5m2 S-2.3m2 L-4.5m2 S-2.3m2 L-8.9m2 S-4.4m2 L-7.0m2 S-3.4m2 Filtration method Inside-out Outside-in Initial flux L/H, 0.1mpa, 25˚C pure water as feed >900 (L) >420 (S) >900 (L) >420 (S) >1100 (L) >530 (S) >1000 (L) >480 (S) Designed water flux 40-120L/m2/h 40-80L/m2/h End seal material Epoxy resins Housing material UPVC Connection/Pipe Union connection / PVC Pipe OD. 32mm Max. Feed pressure 0.3mpa 0.3mpa 0.3mpa 0.25mpa Max. trans-membrane pressure 0.2mpa 0.2mpa 0.2mpa 0.15mpa Normal trans-membrane pressure 0.02-0.15mpa 0.02-0.15mpa 0.02-0.15mpa 0.01-0.1mpa Feed turbidity <50ntu Permeate turbidity <0.1ntu Max. working temperature 5-45˚C PH range 3-9 2-12 1-14 2-13 Microorganism, pathogen 99.99% Removal Reviews (0) Reviews There are no reviews yet. Be the first to review “UF Membrane AQU-90”Cancel ReplyYour email address will not be published. Required fields are marked *Your rating * Rate… Perfect Good Average Not that bad Very poor Name *Email *Your review * Save my name, email, and website in this browser for the next time I comment. Submit Related products 1000LPH UF Manual ControlUf Ultrafiltration Systems R14955,00 Add to cart UF Ultrafiltration System 5000LPH 2 X AQU250B 250*1740Uf Ultrafiltration Systems R60000,00 Add to cart UF Membrane AQU-200Uf Ultrafiltration Systems R14355,00 Add to cart
UF Membrane AQU-90 Ultrafiltration Components Parameters Model No. AQU-90PAN AQU-90PS AQU-90PP AQU-90PVDF Size L Φ90X1162mm S Φ90X678mm L Φ90X1162mm S Φ90X678mm L Φ90X1162mm S Φ90X678mm L Φ90X1162mm S Φ90X678mm Hollow fiber material PAN PS PP PVDF Hollow fiber ID/OD 1.0mm / 1.6mm 1.0mm / 1.6mm 0.4mm / 0.5mm 0.7mm / 1.3mm MWCO (Daltons) 50k～100k 10k～100k 50k～100k 100k～200k Membrane area L-4.5m2 S-2.3m2 L-4.5m2 S-2.3m2 L-8.9m2 S-4.4m2 L-7.0m2 S-3.4m2 Filtration method Inside-out Outside-in Initial flux L/H, 0.1mpa, 25˚C pure water as feed >900 (L) >420 (S) >900 (L) >420 (S) >1100 (L) >530 (S) >1000 (L) >480 (S) Designed water flux 40-120L/m2/h 40-80L/m2/h End seal material Epoxy resins Housing material UPVC Connection/Pipe Union connection / PVC Pipe OD. 32mm Max. Feed pressure 0.3mpa 0.3mpa 0.3mpa 0.25mpa Max. trans-membrane pressure 0.2mpa 0.2mpa 0.2mpa 0.15mpa Normal trans-membrane pressure 0.02-0.15mpa 0.02-0.15mpa 0.02-0.15mpa 0.01-0.1mpa Feed turbidity <50ntu Permeate turbidity <0.1ntu Max. working temperature 5-45˚C PH range 3-9 2-12 1-14 2-13 Microorganism, pathogen 99.99% Removal
