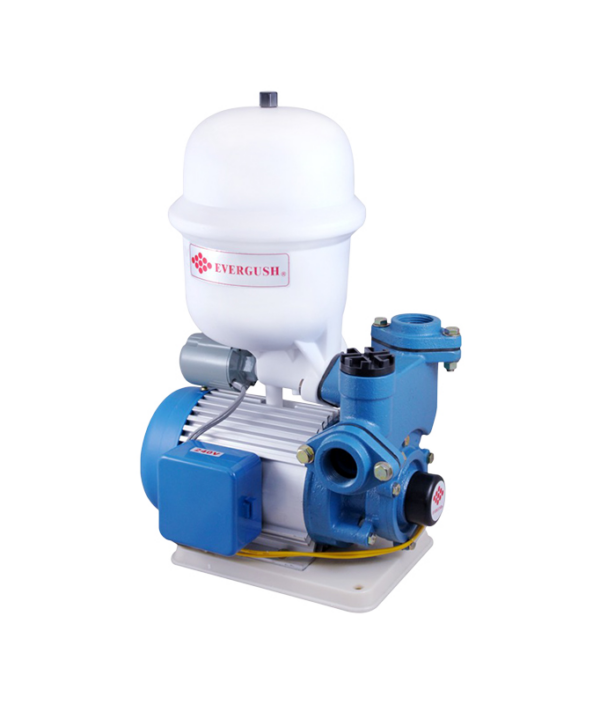

Evergush V760

FEATURES

1. Auto boosts water pressure when water is consumed; Stop running automatically when water is not consumed.
2. Pre-pressure one-piece forming diaphragm pressure tank with good appearance and corrosive resistant.
3. Install overload protector in the motor’s circuit and thermal shutoff device on the pump front cover to protect the motor from burnout due to abnormal conditions.
4. May select stainless steel pump casing model(V260AS, V460AS) to avoid being jammed shaft during long term idle and ensure clean water provided.
5. (Accessory)A water-proof plastic cover is available upon customer’s request. To extend the life-span of the V-series pump if the machine is installed outdoors.

Applications

1. Water supply and pressure boosting in residential and commercial applications.
2. Water pressure boosting for barbershop, restaurant, sprinkler systems, washing machine, residence, villa, house,..etc.

Operating Conditions

1. Ambient temperature: Max. 40℃
2. Liquid temperature: 2~50℃
3. Suction Head: Max. 6M
4. Before using the pump, be sure the inlet pressure setting is lower than on the setting of the pressure switch.
5. For clean liquids, without the impurity or chemical matters.

Specifications

1. Power: 1/4 HP~1HP (0.18KW~0.75KW)
2. Motor: IP54 / Insulation B
   Only single-phase 1Phase 110V/220V (60Hz)
   1Phase 220V~240V (50Hz)
   Built-in thermal overload protector
3. Max. Head: 45M
4. Max. Capacity: 70LPM
5. Pressure set : 1.0~ 3.2 bar. (Depending on the model you choose)
6. V460AH(1/2HP) and V760H(1HP) use dual-voltage (110 / 220V) design for the 60Hz model, wiring connection way is as following.
